July 20, 2023

Predicting goals scored with Poisson regression in C++

I’ve been interested in the application of statistical learning to football and how the professionals use it in sports betting. I’ve also wanted to get some practice in with C++ and this project kills both birds.

The project is available on GitHub: https://github.com/kelanyll/poisson.

The classic method that beginners are directed to uses Poisson regression to predict goals scored by both teams in a football match.

Libraries for this exist out of the box for most languages known for data analysis like Python and R. It was difficult to find anything that works out of the box for C++.

You should have a really good reason to use C++ for something like this. And even if you do, you’re probably better off using something like pybind11. If you’re committed then I hope this post helps you out.

Dependencies

I found the BOOM project that has support for Poisson regression. It is intended to be used via an R interface but it’s written in C++. It looks to have been used by Google and still maintained which can’t hurt. It’s built using Bazel so wasn’t super easy to integrate with CMake (wrote another post about this) but I managed to get it working with ExternalProject.

I’m using DataFrame which is a pandas-like library for manipulating 2D data.

And I use GoogleTest for unit testing.

I’m using the same data (Premier League 11/12) as opisthokonta to help validate the end result. This isn’t deterministic as Maximum Likelihood Estimation (MLE) can converge to a local optimum but it’s a signal.

opisthokonta’s approach is actually inspired by this paper written by Alan J. Lee and not Maher which Dixon-Coles builds upon. Something to keep in mind if you start getting confused as to why one implemention sums the parameters and another takes the product of them.

Most of the work here is wrangling the data into a format we can learn a Poisson regression model on. The most significant part is using one hot encoding as the variables all need to be numerical.

void DataFramePosRegTransformerImpl::one_hot_encode_string(ULDataFrame& df) {
    for (std::tuple<ULDataFrame::ColNameType,
                    ULDataFrame::size_type,
                    std::type_index> col_info : df.get_columns_info<std::string>()) {
        auto col_name{std::get<0>(col_info).c_str()};
        std::vector<std::string> col_data{df.get_column<std::string>(col_name)};

        std::unordered_map<std::string, std::vector<unsigned int>> encoded_cols{};

        for (int i = 0; i < col_data.size(); i++) {
            auto encoded_col_name{std::string{col_name} + "_" + col_data[i]};
            if (!encoded_cols.contains(encoded_col_name)) {
                encoded_cols[encoded_col_name] = std::vector<unsigned int>(col_data.size(), 0);
            }
            encoded_cols[encoded_col_name][i] = 1;
        }

        df.remove_column(col_name);

        for (const std::pair<std::string, std::vector<unsigned int>>& pair : encoded_cols) {
            df.load_column<unsigned int>(pair.first.c_str(), std::move(pair.second));
        }
    }
}

Learning the model

    ULDataFrame train_df{add_intercept(transform_to_row_per_goals(get_data()))};

    PoissonRegressionTrainer trainer{};

    PoissonRegressionModelData model_data{trainer.get_poisson_regression_model_data(std::move(train_df), "goals")};

    BOOM::PoissonRegressionModel model{static_cast<int>(model_data.x_col_names.size())};
    model.set_data(model_data.data);
    model.mle();
    print_variables(model_data.x_col_names, model.coef().vectorize());

    ULDataFrame test_df{add_intercept(get_test_data())};

    for (BOOM::Vector x : trainer.generate_x(std::move(test_df), model_data)) {
        double lambda{exp(model.predict(x))};
        std::cout << "Expected goals: " << lambda << std::endl;
    }

In practice, the parameters we learnt are different to opisthokonta:

intercept: 0.097209
team_Man United: 0.368457
team_Wolves: -0.384698
team_Swansea: -0.319952
team_Sunderland: -0.302323
team_Blackburn: -0.20577
team_Fulham: -0.232744
team_Wigan: -0.355748
team_Norwich: -0.13755
team_Liverpool: -0.264599
team_Newcastle: -0.0781957
team_Arsenal: 0.199414
team_Bolton: -0.2495
team_QPR: -0.328186
team_West Brom: -0.296448
team_Man City: 0.408514
team_Tottenham: 0.0766307
team_Stoke: -0.519065
team_Chelsea: 0.0662952
team_Aston Villa: -0.491616
team_Everton: -0.20261
opponent_Tottenham: -0.0244485
opponent_Fulham: 0.176567
opponent_Stoke: 0.203365
opponent_Man City: -0.344669
opponent_Wigan: 0.366435
opponent_Chelsea: 0.0899492
opponent_Aston Villa: 0.204339
opponent_Arsenal: 0.162373
opponent_Man United: -0.219121
opponent_Norwich: 0.439115
opponent_Everton: -0.0649364
opponent_Wolves: 0.644837
opponent_Bolton: 0.587764
opponent_Swansea: 0.172638
opponent_Liverpool: -0.0678563
opponent_West Brom: 0.19308
opponent_Sunderland: 0.0702192
opponent_Blackburn: 0.602739
opponent_Newcastle: 0.184476
opponent_QPR: 0.430114
home: 0.268009

But when we predict goals scored in an Aston Villa vs Sunderland game, the Poisson $\lambda$ values are the same:

Expected goals: 0.94537
Expected goals: 0.999226

This suggests that we are still coming to the same optimum. The difference in parameter values could be down to the optimization algorithm being used i.e. Newton-Raphson, IRLS etc.

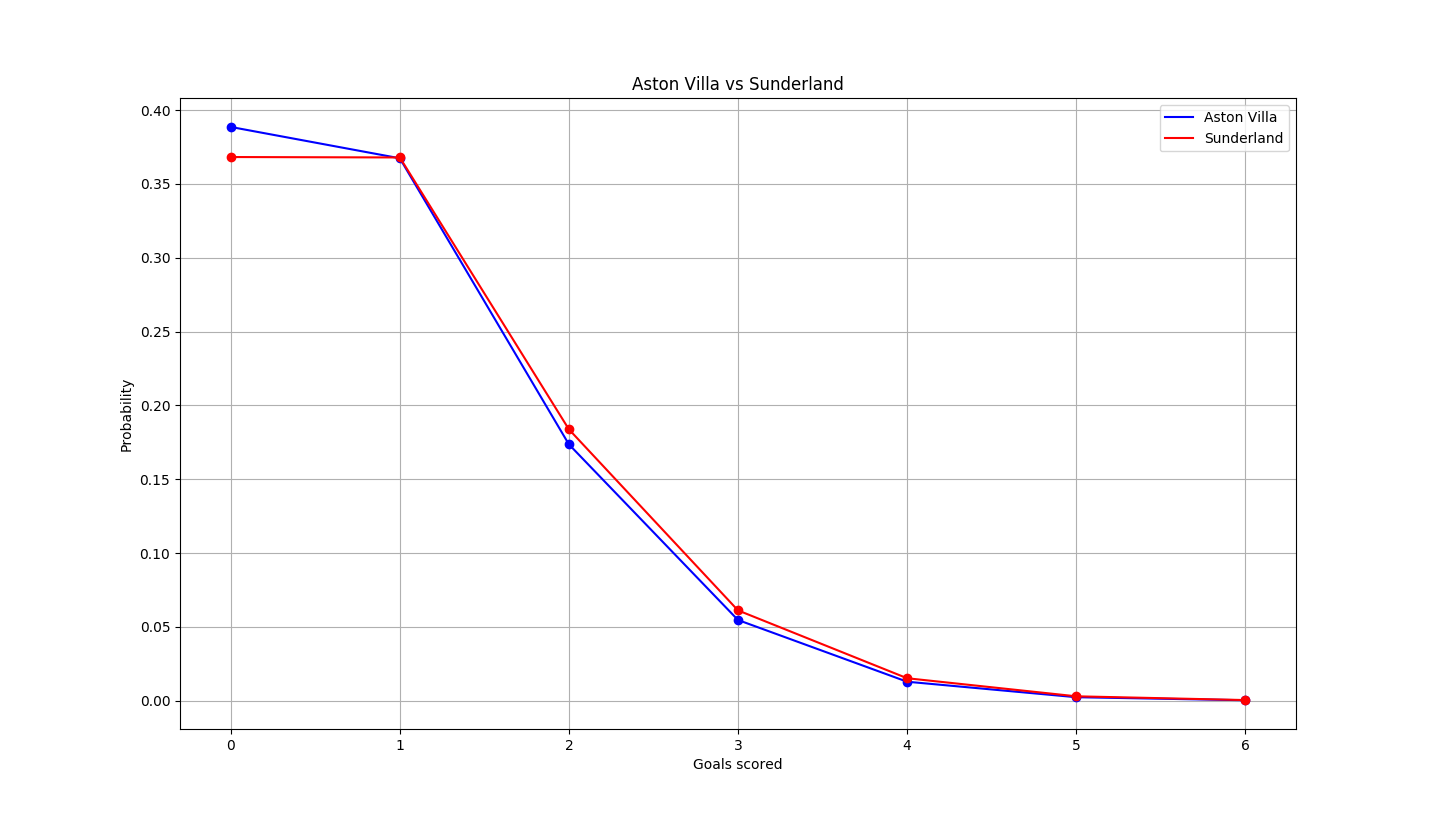

This is what the probability distribution function looks like for both teams in this game. Goals scored

From here you’re likely to want to use the Skellam distribution to model the result of the match. But there’s still sports bets you can make without that e.g. over/under on goals.

This is likely the simplest approach to predicting goals scored using statistical learning. I’d recommend exploring opisthokonta’s material if you’re interested in expanding on this.
